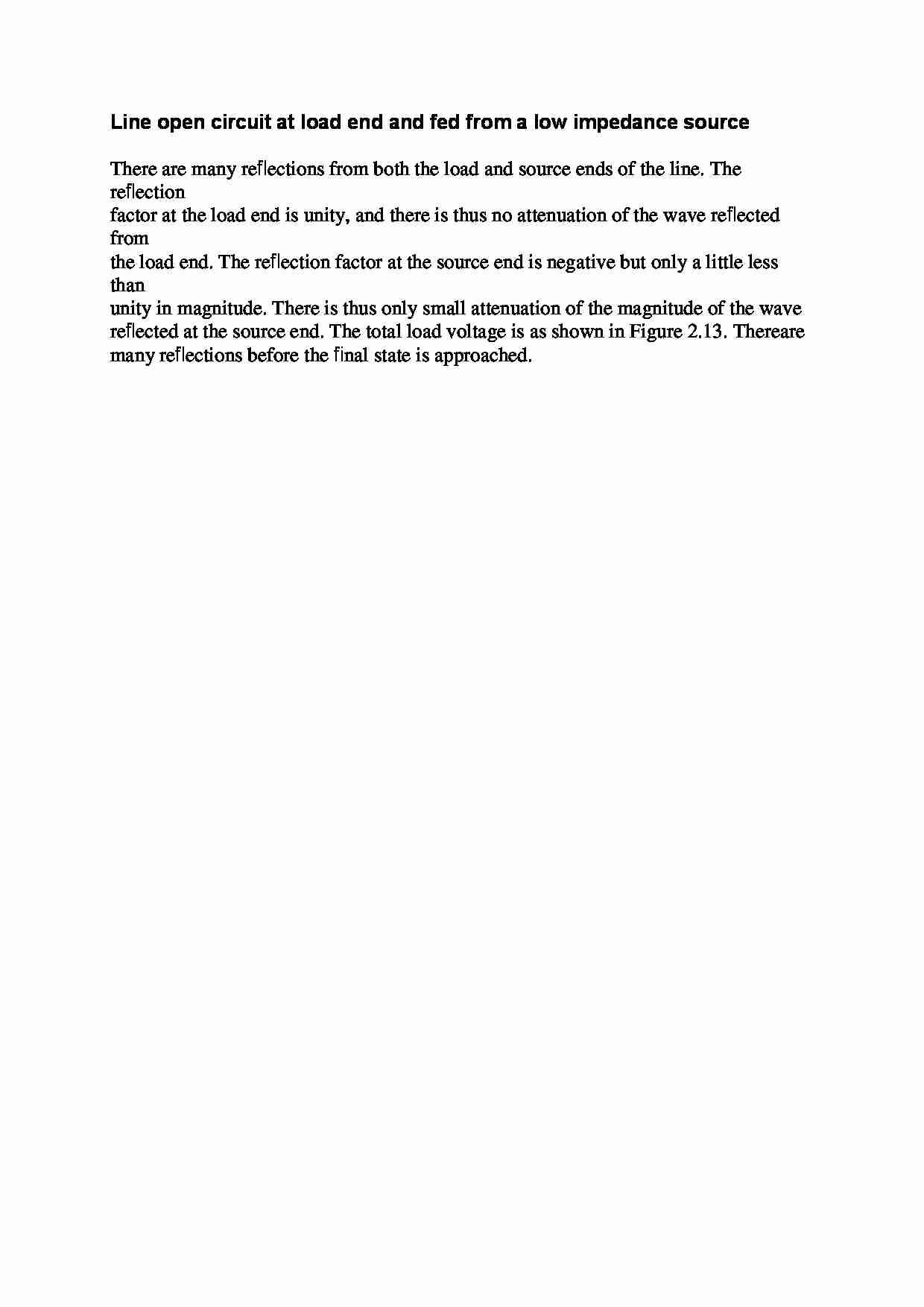

Line open circuit at load end and fed from a low impedance source There are many reflections from both the load and source ends of the line. The reflection
factor at the load end is unity, and there is thus no attenuation of the wave reflected from
the load end. The reflection factor at the source end is negative but only a little less than
unity in magnitude. There is thus only small attenuation of the magnitude of the wave
reflected at the source end. The total load voltage is as shown in Figure 2.13. There are
many reflections before the final state is approached.
